Waterway Executive 48 Pump delivers reliable performance. This 48-frame wet end features a large 6½" diameter design that maximizes head pressure while improving energy efficiency. Built with premium materials including silicone carbide seals, Viton bellows, and 316 stainless steel casing, it resists corrosion from chlorine, bromine, and salt water. Thermal protection safeguards motor longevity, while the versatile 90° rotatable wet end adapts to various installation configurations. The 2-speed, 230-volt operation provides flexible performance control for year-round pool maintenance.
Quick Specs
- Intake: 2" (Measures 3" across)
- Discharge: 2" (Measures 3" across)
- Horsepower: 4.5 HP Waterway Executive 48 Hot Tub Pump
- Frame: 48
- Volts: 230V 60 Hz
- High Speed Amps: 12 Amps (3,450 RPM)
- Low Speed Amps: 3.5 Amps (1,725 RPM)
- Power cord not included - purchase separately
Features

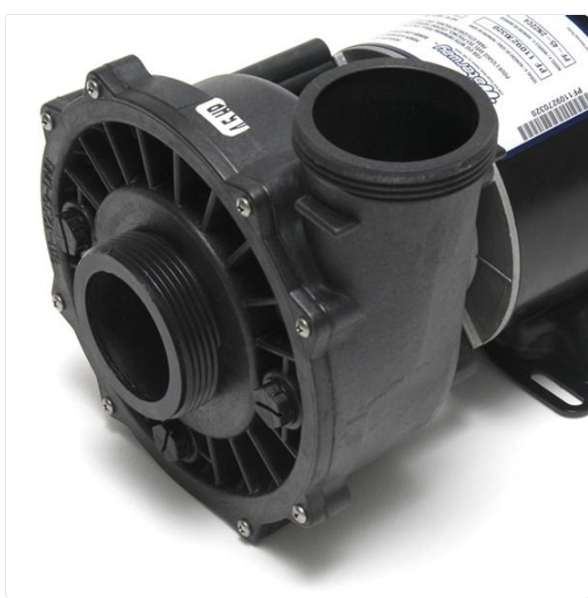

- Executive wet end designed specifically for 48-frame motors.
- Large 6.5" diameter wet end for higher head pressure and energy efficiency.
- Thermally protected to extend life expectancy of motor.
- Highly versatile wet end can be rotated every 90 degrees.
- Silicone carbide seals, Viton bellows, 316SS casing, corrosion resistance against chlorine, bromine & salt.
Important Information
When selecting a replacement, verify you're ordering the correct unit by checking the Waterway part number on your existing pump's label. Model numbers alone are insufficient for replacement selection, as Waterway has manufactured multiple pump variations under identical model designations that are not compatible with one another. Always match the specific part number to ensure proper fit and function.

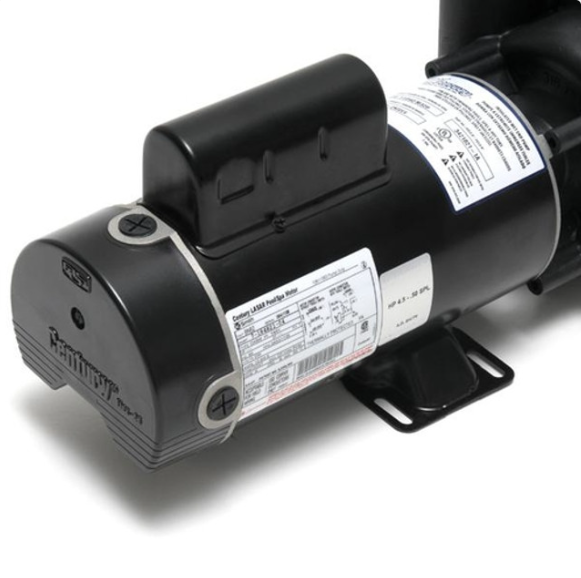

The pump's motor may be equipped with either Century/A.O. Smith or U.S. Motors branding ("C" or "M")—both perform identically and are fully interchangeable. Low-speed amperage may range from 3.5 to 4.4 amps depending on motor brand, with no effect on overall performance. Built for durability and consistent operation in residential pool applications.
How to Understand Horsepower Ratings
When selecting a replacement pump, avoid relying solely on horsepower ratings from your spa manual or existing pump label. Horsepower designations like SPL-HP, BHP, MBHP, RHP, or S-HP do not represent true continuous operating horsepower and can be misleading or inflated. Installing an oversized pump risks damaging your hot tub system. Instead, match the exact Waterway part number from your current pump to ensure proper compatibility and safe operation.
When replacing your pump, the most reliable selection method is to reference the amperage rating from your existing pump's label rather than horsepower specifications. First, confirm whether your current pump is a 48 or 56 frame size. Then locate the high-speed amperage rating on the label—this specification provides an accurate basis for matching a compatible replacement. For 2-speed pumps, both high and low amperage ratings are listed on the label. Using amperage ratings ensures you select the correct pump and avoid installation errors that could damage your system.
How to Determine Hot Tub Pump Threaded Port Size
When replacing your pump, remember that port sizes listed on hot tub pumps are nominal measurements and do not represent the actual outside diameter of the threaded connections. To verify the correct thread sizes for your plumbing, measure the diameter of your existing pump's intake and discharge ports with a tape measure. This ensures you order a replacement with compatible plumbing connections and avoid installation complications.
- 1.5” Pump thread measures approx. 2-3/8” Outside Diameter
- 2.0” Pump thread measures approx. 3” Outside Diameter
- 2.5” Pump thread measures approx. 3-5/8” Outside Diameter
How to Understand Amperage Ratings
2-speed pumps operates at fixed RPM rates: 3450 RPM on high speed and 1725 RPM on low speed, ensuring predictable circulation patterns. While replacement pumps with similar performance specifications may show slight variations in amperage ratings, the RPM output remains constant across compatible models. When sourcing a replacement, focus on matching the RPM specifications and amperage range from your original pump's label to guarantee proper system compatibility and optimal performance.
