Balboa BP100 Spa Pak w/ TP200T Retrofit Kit (4 KW) - No Pump Cable

Economisez $130
$699.99 $829.99
G6402-NC

Product Description

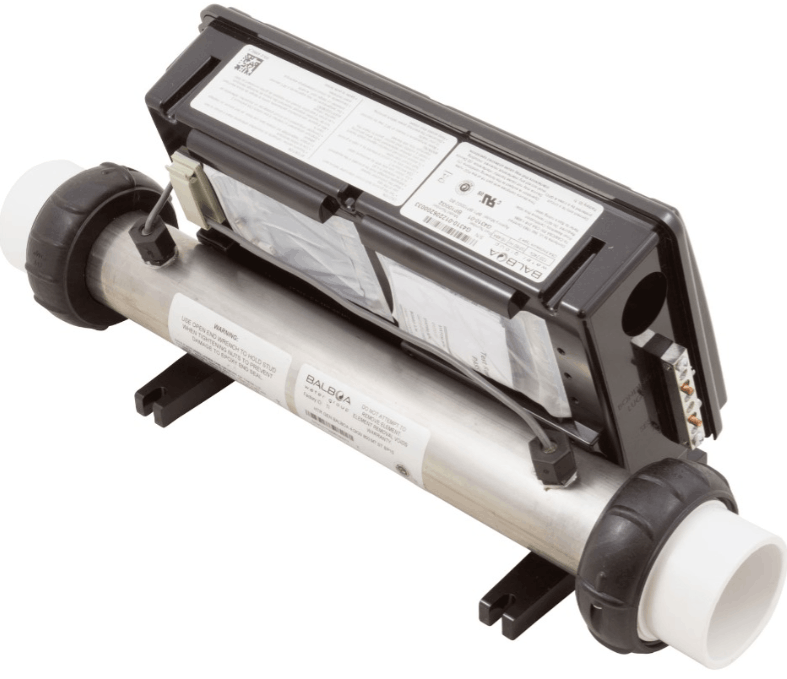

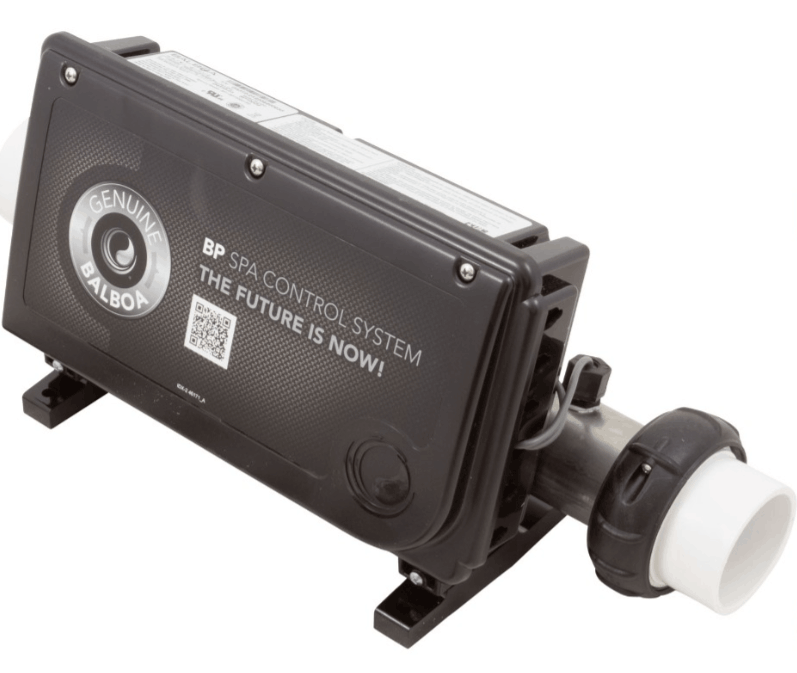

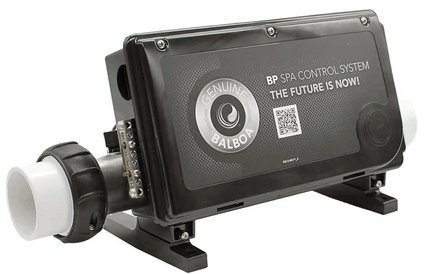

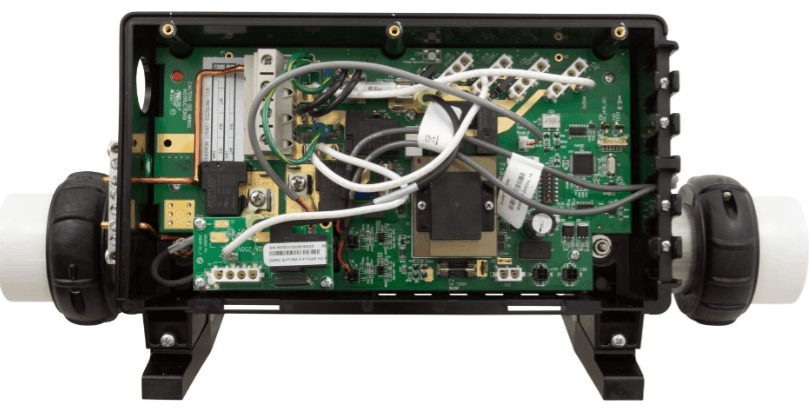

The Balboa BP100 Spa Pack is a modern control system equipped with a TP200T topside controller. It includes a 4 kW heater and supports two pumps: a two-speed primary pump and a single-speed secondary pump. The unit comes factory-configured for 230V operation. Its compact design places the heater at the rear of the pack.

Balboa Part Number: G4602-NC

Quick Specs

  • Spa Pak Model: BP100 G4602 (equipped w/ 4 KW heater)
  • Power Requirements: 240 VAC 50/60HZ (120 VAC 50/60HZ Convertible)
  • Pump 1 Output: 230v for 1 or 2 speed pump (12 amp max)
  • Pump 2 Output: 230v for 1 speed pump (12 amp max)
  • Circ Pump Output: 230v for 1 speed pump (2 amp max)
  • Ozone Output: 230v circuit (0.5 amp max - slaved to circ pump)
  • Spa Light Output: 10 VAC on/off 240-minute timer (1 amp max)
  • AV (Stereo) + C8Z Output: 120V hot (3 amp max - Always on)
  • Heater Output: 4 KW @ 230V | 5.5 KW @ 230V

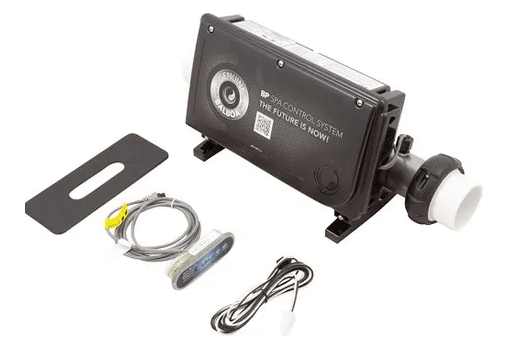

What's Included in the Retrofit Kit?

  • Balboa BP100 Spa Pak equipped w/ 4 KW Heater (G4310)
  • TP200T Topside Control - face 4 5/16" x 1 1/2" | hole 3 3/4" x 1" (G8421)
  • TP200T Overlay (17325)
  • Panel Bezel (Adaptor Plate) - 8 1/2" x 3 1/2" (11718)
  • 8 ft. Wire Assembly for Spa Light (25098)

Important Information

Review the attachment below with control panel compatibility. All standard TP series topside control panels.

Pump 1, Circulation Pump, and Ozone must all be the same voltage on the BP100 pak. With 120 VAC power input (for setups 3 & 4 only), Pump 1, Circ Pump and Ozone must all be 120V. See wiring diagram for rewiring instructions.

The Balboa BP100 Spa Pak requires a minimum water flow rate of 23 gallons per minute for the flow switches to activate and the heater to function properly. The installer must verify that your spa's plumbing system can deliver this flow rate to ensure the system operates as intended.

Balboa BP100 Spa Pak Tech Sheet
