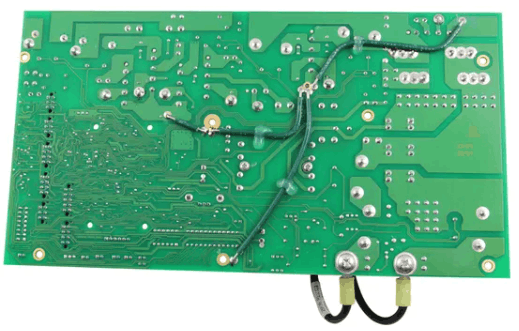

Balboa EL2000 M3 Circuit Board - G1222

Save $75
$624.99 $699.99
G1222

Product Description

The Balboa EL2000 M3 circuit board (G1222) is the replacement for several older models (see below).

Balboa Part Number: G1222 (alternatively 53834, 53834-04, 53834-05)

Quick Specs

  • Brand: Balboa
  • Voltage: 115/230V
  • Power Requirements: 115 / 230 VAC, 60Hz. GFCI Protected Service (3 Wire 115V, 4 Wire 230V)
  • Neutral Required: Yes
  • Circuit Breaker Rating: 20A (115V) & 50A (230V)
  • System Series: VS510SZ
  • Configuration: 1-2 Pumps & additional circulation pump (high flow only), Ozone, 12v Light, A/V, Blower
  • Pump 1 Output: 115/230v for 1 or 2 speed pump (12 amp max)
  • Pump 2 Output: 115/230v for 1 speed pump (12 amp max)
  • Pump 3 Output: 115/230V for 1 speed pump or blower (12 amp max)
  • Circ Pump Output: 115/230V for 1 speed pump (2 amp max)
  • Ozone Output: 115/230V (if circ pump is used, ozone & circ must be same voltage)
  • Spa Light Output: 12V
  • AV Output: 115/230V

Important Information

Balboa circuit boards are marked with a "Chip Number" that is located on a white label placed on the logic chip near the center of the board. It is imperative that this number is provided for proper circuit board match. Just because boards may look similar the programming may not allow it to work properly in all application. Please review the three indicators below for a proper match which includes:

--> Serial Number (ex. S/N 52295-011010060001)

--> Description (ex. Board Balboa 2000LE SER STD LE)

--> Chip Number (ex. 2000LER1E / 20101006)

Do not purchase a circuit board based on appearance alone. Many boards share the same physical layout, but they use different operating chips and software. Because of these internal differences, boards that look identical are not always interchangeable.

This circuit board will NOT replace Thermo Spa 55000-02, 55000-03, 55000-04, 55001, TS2000R2A, TS2000R2B, TS2000R2C, or QC2000. If your spa is a Thermo Spa, you will need to contact them directly to get the correct circuit board for your system. This board only installs in a plastic box - it will not install in the metal box.

This G1222 circuit board is equipped with M7 Technology (does not require a pressure switch or external sensors). The use of copper straps on heater to PC board connection voids the warranty.
